Details

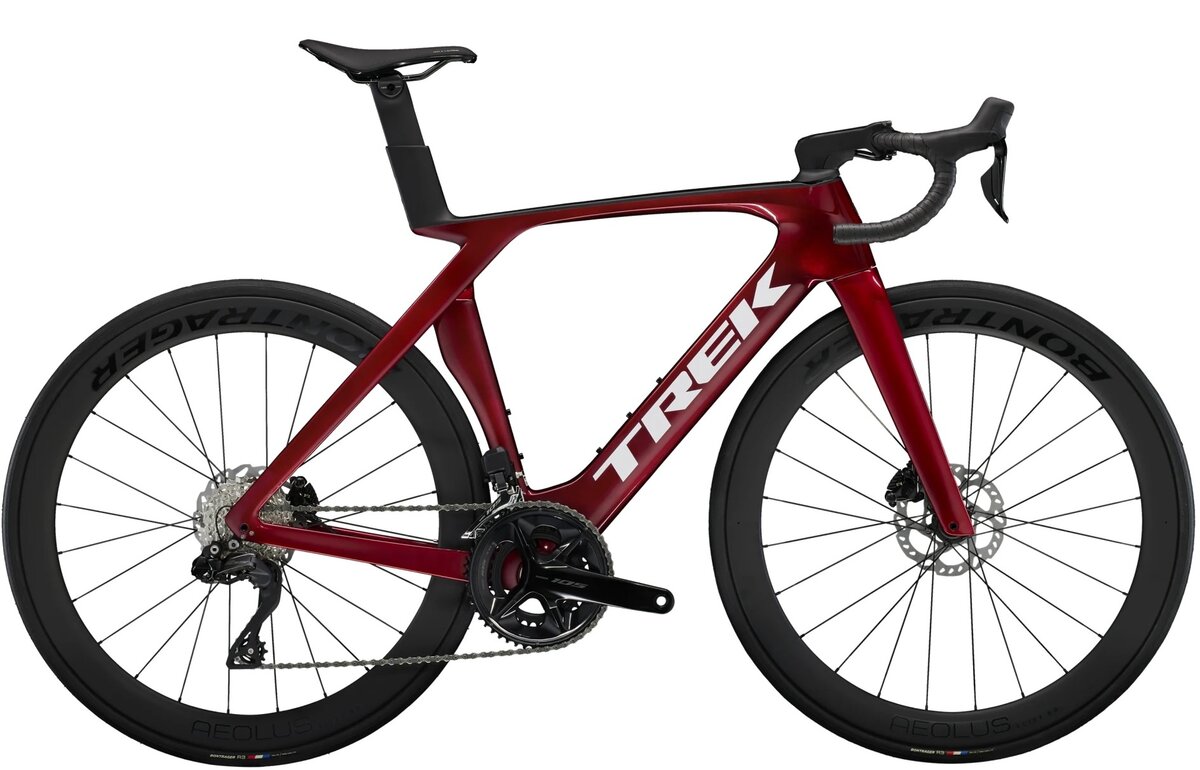

Madone SL 6 offers legendary speed, cutting-edge tech, and unbelievable ride quality in a 500 Series OCLV Carbon package that keeps things light and quick for fast road rides and races. IsoFlow technology smooths out bumps in the pavement while lowering weight and offering an aerodynamic advantage over your competition, and a wealth of super speedy features like our newest Kammtail aero shapes, an economical Shimano 105 Di2 electronic drivetrain, carbon wheels, and invisible hose routing make for a race machine that feels just as fast as it looks.
Specs
Frame | 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle |
---|---|
Fork | Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle |
Rims/Wheels | Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle / Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, Shimano 11 speed freehub, 142x12mm thru axle |
Tires | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c |
Crankset | Shimano 105 R7100, 50/34, 172.5mm length |
Bottom Bracket | Praxis, T47 threaded, internal bearing |
Chain | Shimano SLX M7100, 12 speed |
Front Derailleur | Shimano 105 R7150 Di2, braze-on, down swing |
Rear Derailleur | Shimano R7150 Di2, 36T max cog |
Rear Cogs | Shimano 105 7101, 11-34, 12 speed |
Shifters | Shimano 105 R7170 Di2, 12 speed |
Handlebars | Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 42cm width |
Tape/Grips | Bontrager Supertack Perf tape |
Stem | Trek RCS Pro, -7 degree, 90mm length |
Brakes | Shimano 105 hydraulic disc, flat mount |
Saddle | Bontrager Aeolus Comp, steel rails, 145 mm width |
Seat Post | Madone aero carbon seatpost, 0mm offset, short length |
Weight | 56 - 8.40 kg / 18.52 lbs |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Crimson / 54 | 5298611 | MAD227383637 |
