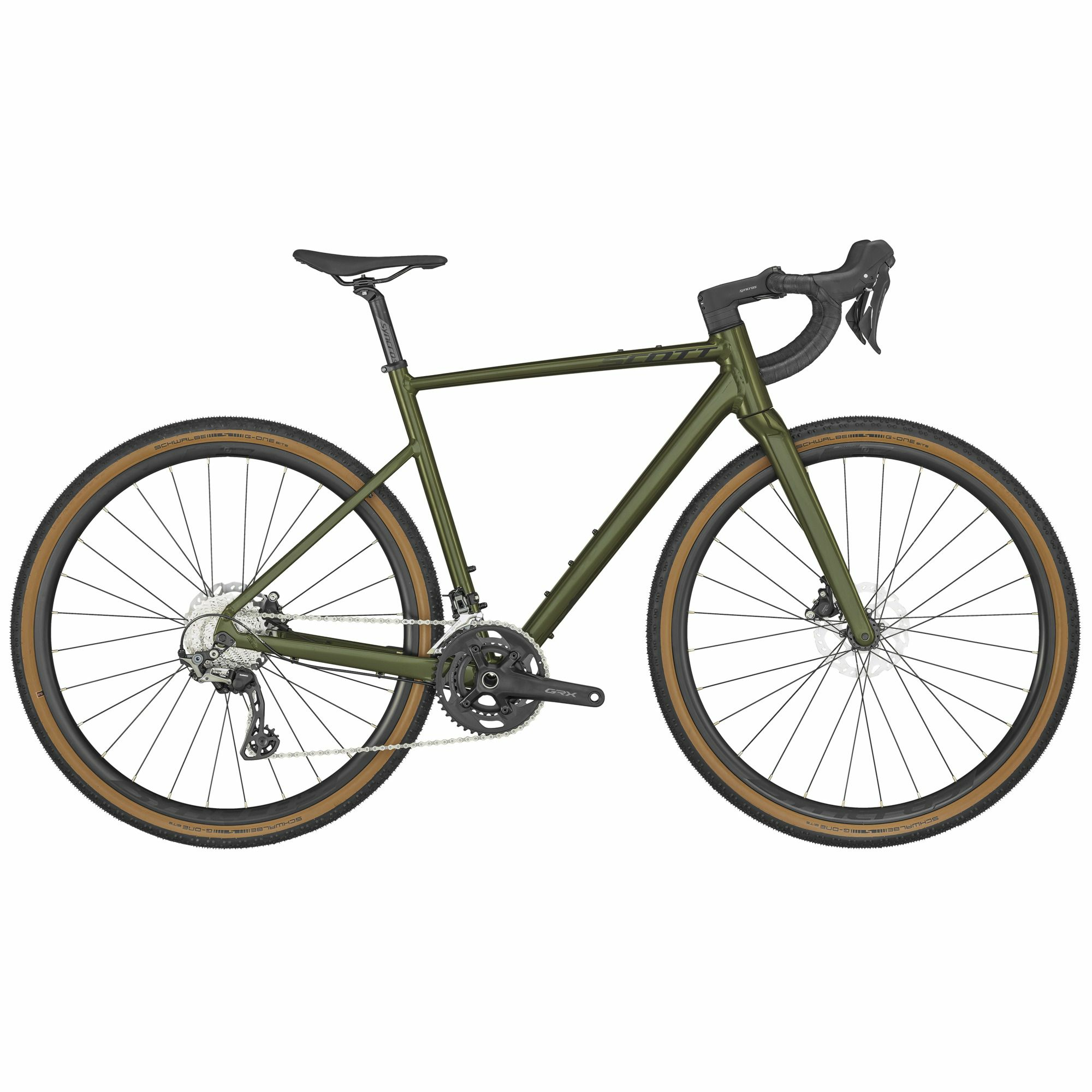

Scott Speedster Gravel 20
This item is currently not available.
Details
The SCOTT Speedster Gravel 20 is your one stop shop for when the path gets less traveled. Comfortable geometry for all-day rides, room for big tires and fully internal cable routing make this a great option for those looking to take it off road!
Please note that bike specifications are subject to change without prior notice
- Speedster Gravel Disc Alloy Frame
- Shimano GRX RX810/600 Disc 22 Speed
- Schwalbe G-One Bite Tires
| XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 | ||
|---|---|---|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE | 70.0 ° | 70.0 ° | 70.0 ° | 71.0 ° | 71.0 ° | 71.0 ° | 71.0 ° |
| B | HEAD TUBE LENGTH | 93.0 MM | 103.0 MM | 123.0 MM | 143.0 MM | 163.0 MM | 183.0 MM | 203.0 MM |
| C | TOP TUBE HORIZONTAL | 512.3 MM | 523.0 MM | 536.5 MM | 556.5 MM | 571.2 MM | 581.2 MM | 594.2 MM |
| D | STANDOVER HEIGHT | 747.0 MM | 762.0 MM | 786.0 MM | 806.0 MM | 825.0 MM | 844.0 MM | 869.0 MM |
| E | BB OFFSET | -71.0 MM | -71.0 MM | -71.0 MM | -71.0 MM | -71.0 MM | -71.0 MM | -71.0 MM |
| F | BB HEIGHT | 283.0 MM | 283.0 MM | 283.0 MM | 283.0 MM | 283.0 MM | 283.0 MM | 283.0 MM |
| G | WHEEL BASE | 1,019.5 MM | 1,026.9 MM | 1,037.7 MM | 1,044.9 MM | 1,056.4 MM | 1,067.0 MM | 1,071.3 MM |
| H | BB CENTER TO TOPTUBE CENTER | 430.0 MM | 450.0 MM | 480.0 MM | 500.0 MM | 520.0 MM | 540.0 MM | 570.0 MM |
| I | BB CENTER TO TOP OF SEATTUBE | 470.0 MM | 490.0 MM | 520.0 MM | 540.0 MM | 560.0 MM | 580.0 MM | 610.0 MM |
| J | SEAT ANGLE | 75.0 ° | 74.5 ° | 74.0 ° | 73.0 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| K | CHAINSTAY | 435.0 MM | 435.0 MM | 435.0 MM | 439.0 MM | 439.0 MM | 439.0 MM | 439.0 MM |
| L | REACH | 374.0 MM | 378.0 MM | 382.0 MM | 387.0 MM | 392.0 MM | 396.0 MM | 403.0 MM |
| M | STACK | 519.0 MM | 528.4 MM | 547.2 MM | 570.0 MM | 588.9 MM | 607.8 MM | 626.8 MM |
| N | STEM LENGTH | 73.0 MM | 83.0 MM | 93.0 MM | 103.0 MM | 103.0 MM | 113.0 MM | 113.0 MM |
Specs
| Fork | Speedster Gravel HMF Flatmount Disc, 1 1/4"-1 1/2" Eccentric Carbon steerer |
|---|---|
| Hubs | Formula Team II CL Disc 28 H |
| Rims | Syncros Race X25 Disc, 28 Front / 28 Rear |
| Stem | Syncros RR2.5 1 1/4" / four Bolt 31.8mm |
| Chain | KMC X11 |
| Frame | Speedster Gravel Disc / D.Butted 6061 Alloy, SCOTT Gravel geometry / Replaceable Derailleur Hanger, Internal cable routing, Syncros fender kit ready |
| Tires | Schwalbe G-One Bite Performance, 700x45C |
| Brakes | Shimano BR-RX400 Hyd. Disc |
| Rotors | Shimano SM-RT70 CL rotor 160/F and 160/R |
| Saddle | Syncros Tofino Regular 2.5 |
| Spokes | Black 2mm |
| Headset | Acros AIF-1133 |
| Crankset | Shimano GRX FC-RX600-11, 46x30T |
| Seatpost | Syncros RR2.5 27.2/300mm |
| Shifters | Shimano GRX ST-RX600 Disc, 22 Speed |
| Handlebars | Syncros Creston 2.0 X, Alloy 31.8mm |
| Bottom Bracket | Shimano BB-RS500 PB |
| Rear Derailleur | Shimano GRX RD-RX810, 22 Speed |
| Front Derailleur | Shimano GRX FD-RX810-F |
| Cassette/Freewheel | Shimano CS-HG700, 11-34 |
* Subject to change without notice.
